Hey there! As a supplier of external gear pumps, I've been getting a lot of questions lately about how the inlet and outlet pipe diameter affects the performance of these pumps. So, I thought I'd take a deep dive into this topic and share some insights with you all.
Let's start with the basics. An external gear pump is a type of positive displacement pump that uses two meshing gears to transfer fluid. One gear is driven by a motor, and it rotates the other gear. As the gears rotate, they create chambers that trap fluid at the inlet and then move it to the outlet. Simple enough, right?
Now, let's talk about the inlet and outlet pipe diameter. The diameter of these pipes plays a crucial role in the overall performance of the external gear pump.
Impact on Flow Rate
The flow rate of a pump is the volume of fluid it can move in a given time. The inlet and outlet pipe diameter directly affects this flow rate. If the inlet pipe diameter is too small, it can create a restriction. This restriction causes the fluid to have to squeeze through a narrow space, which slows down the flow. It's like trying to pour a large amount of water through a tiny straw - it just doesn't work very well.
On the other hand, if the inlet pipe diameter is too large, the fluid might not enter the pump with enough velocity. This can lead to cavitation, which is a big no - no. Cavitation occurs when the pressure of the fluid drops below its vapor pressure, causing bubbles to form. These bubbles can implode when they reach areas of higher pressure, damaging the pump components over time.
For the outlet pipe, a small diameter can also restrict the flow of fluid out of the pump. This can cause backpressure, which means the pump has to work harder to push the fluid through the small opening. As a result, the pump might not be able to achieve its rated flow rate, and it could even overheat.
Effect on Pressure
Pressure is another important aspect of pump performance. The inlet and outlet pipe diameter can significantly impact the pressure generated by the pump.
A small inlet pipe diameter can cause a drop in the suction pressure. When the fluid has to pass through a narrow inlet, it experiences a pressure loss. This can make it difficult for the pump to draw in the fluid, especially if the fluid is viscous.
When it comes to the outlet pipe, a small diameter increases the pressure at the outlet. The pump has to push the fluid through a smaller area, so the pressure builds up. While this might seem like a good thing in some cases, excessive pressure can put a lot of stress on the pump and the piping system. It can lead to leaks, pipe bursts, and premature wear and tear of the pump components.
Conversely, a large outlet pipe diameter reduces the outlet pressure. The fluid has more space to flow, so the pressure is lower. This might be beneficial in some applications where a lower pressure is required, but in others, it might not meet the system requirements.
Efficiency Considerations
Efficiency is a key factor in any pump operation. The right inlet and outlet pipe diameter can help improve the efficiency of an external gear pump.
If the pipe diameters are properly sized, the pump can operate at its optimal point. It can draw in and discharge the fluid smoothly, without wasting energy on overcoming unnecessary restrictions or dealing with cavitation. This means less power consumption and lower operating costs.
For example, if you choose an inlet pipe diameter that allows the fluid to enter the pump with just the right velocity, the pump can fill its chambers more effectively. And when the outlet pipe diameter is sized correctly, the pump can push the fluid out without creating excessive backpressure.
Real - World Examples
Let's take a look at some of the external gear pumps we offer and how the pipe diameter can affect their performance.
The Kx185 11t Hydraulic Pilot Pump Gear Pump For Kubota is designed for specific hydraulic systems. If the inlet and outlet pipe diameters are not chosen correctly, it might not be able to provide the required flow and pressure for the Kubota equipment. For instance, if the inlet pipe is too small, the pump might not be able to draw in enough hydraulic fluid, leading to poor performance of the hydraulic system.
The PC75uu - 2 Uch0125r9469 Gear Pump Pilot Charge Pump is another great example. This pump is used in various applications where precise flow and pressure control are essential. An improper pipe diameter can disrupt the delicate balance required for its operation. A small outlet pipe could cause high backpressure, which might damage the pump or the connected components.

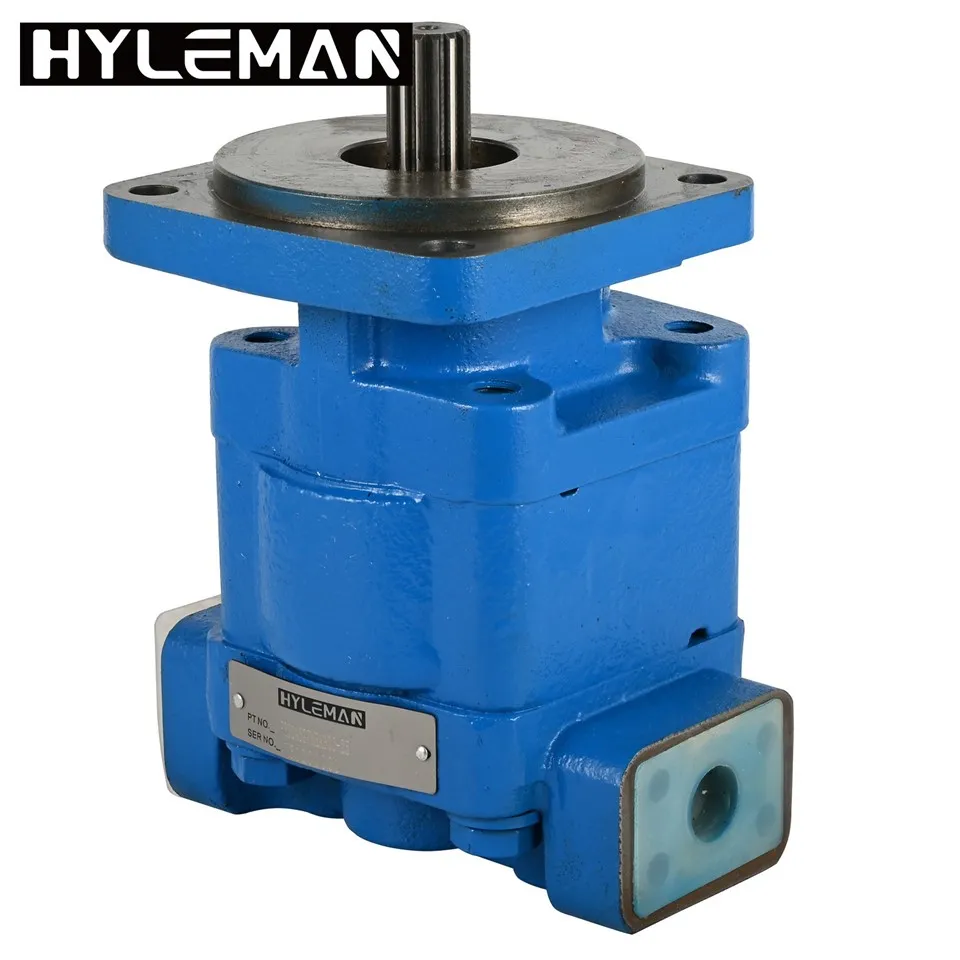

The Oberdorfer Gear Pump is known for its reliability. However, if the inlet and outlet pipe diameters are not suitable for the application, its performance can be compromised. For example, a large inlet pipe diameter without proper flow control can lead to cavitation, reducing the pump's lifespan.
Choosing the Right Pipe Diameter
So, how do you choose the right inlet and outlet pipe diameter for an external gear pump?
First, you need to consider the pump's specifications. The manufacturer usually provides guidelines on the recommended pipe diameters based on the pump's flow rate, pressure, and the type of fluid it will handle.
You also need to think about the application. If the pump is used in a high - pressure system, you might need a larger outlet pipe diameter to prevent excessive backpressure. If the fluid is viscous, a larger inlet pipe diameter can help the pump draw it in more easily.
It's also a good idea to consult with an expert. As a supplier, we have a lot of experience in this area, and we can help you select the right pipe diameters for your specific needs.
Conclusion
In conclusion, the inlet and outlet pipe diameter has a profound effect on the performance of an external gear pump. It affects the flow rate, pressure, and efficiency of the pump. Choosing the right pipe diameters is crucial for ensuring that the pump operates smoothly, lasts longer, and meets the requirements of the application.
If you're in the market for an external gear pump or need advice on pipe sizing, don't hesitate to reach out. We're here to help you make the best choice for your needs. Whether it's the Kx185 11t Hydraulic Pilot Pump Gear Pump For Kubota, the PC75uu - 2 Uch0125r9469 Gear Pump Pilot Charge Pump, or the Oberdorfer Gear Pump, we can provide you with the right solutions.
