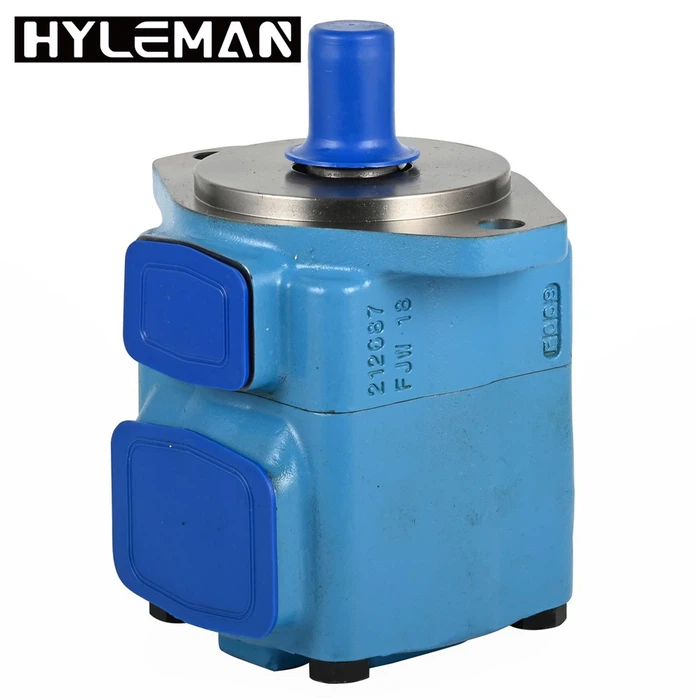

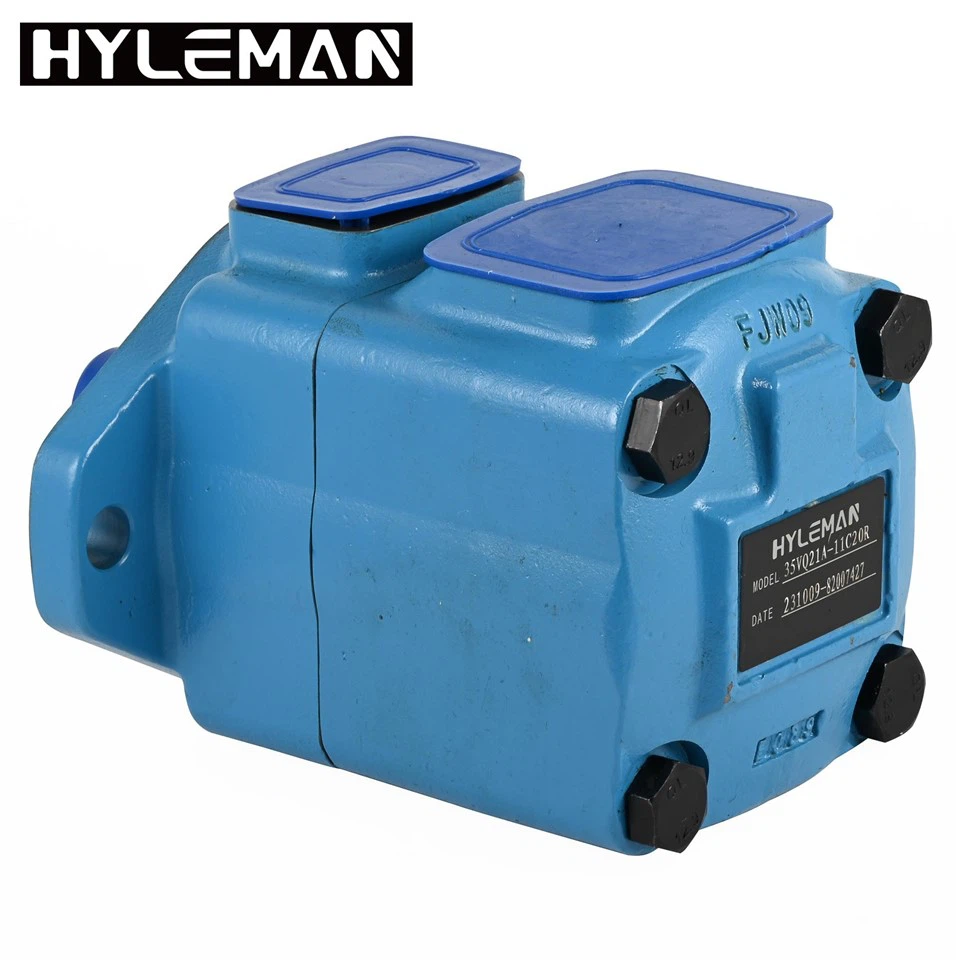

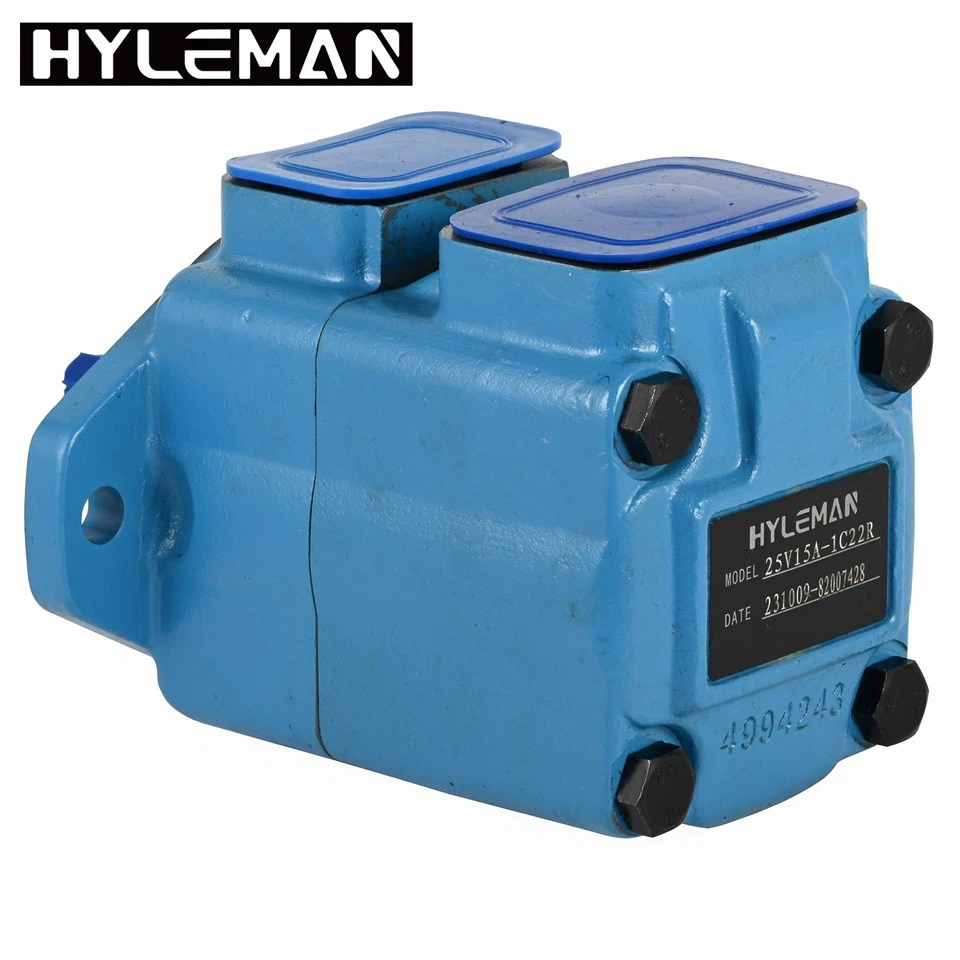

Vane Pump
Your Professional Vane Pump Supplier
Ningbo Hyleman Hydraulics Co., Ltd is a scientific and innovative company integrating R & D, production, sales and service of high-quality hydraulic pumps, motors, gear reducers and other hydraulic products.Hyleman mainly supply A10V, A4V, A4VG, A11V, A15V, A20V,A2FO,A2FM, A6VM, PV, PVP, PVAC, PVB, PVQ, PVH series piston pumps and motors ; T6,T7,V,VQ, M5A, M5B, M4C, M4D, M4E, 25M, 35M, 45M, 50M series vane pumps and motors;C101/102, G101/102, PGP/PGM, 30/31,50/51, 75/76 series gear pumps and motors.
Why choose us
QUALITY ASSURANCE
Through the honing and innovation of Hyleman people, Hyleman series products can not only perfectly replace the original products, but also realize the seamless exchange and connection of all the parts.
GOOD SERVICE
Hyleman are devoting to provide our clients with the best quality products, and the comprehensive solutions of hydraulics.
PRODUCT APPLICATION
Hyleman series products are widely used in engineering machinery, plastic machinery, metallurgical machinery, environmental sanitation machinery, mining machinery, marine machinery, packaging machinery, port machinery and various hydraulic equipment, which are highly praised by clients.
PRODUCT EXPORT
Through the honing and innovation of Hyleman people, Hyleman series products can not only perfectly replace the original products, but also realize the seamless exchange and connection of all the parts. Hyleman products have been exported to more than 70 countries and regions around the world.
Vane pumps are a type of rotary positive displacement pump. A set of paddle-like vanes, mounted radially on a cylindrical rotor, create a number of compartments in which fluid can be trapped and transported through the system. The vanes maintain a close seal against the wall of the pumping chamber preventing fluid from leaking back across the pump. Vane pumps are particularly useful for pumping thin liquids at high pressures. The pumps give low pulsation, accurate flows and have hardened components to resist wear and extend pump life.
Product Parameter
|
Single vane pump parameters |
|||||||
|
PUMP |
FLOW IN GPM @ 1200 RPM & 100 PSI (LPM) |
DISPL. |
MAX. SPEED (RPM) |
MAX. PRESSURE PSI (bAR) M |
TYP. DELIVERY GPM @ |
TYPICAL INPUT POWER HP @ |
WEIGHT LbS (KG) |
|
V10 |
1 (3.8) |
0.20 (3.3) |
4800 |
2500 (172) |
3.60 (13.6) |
7.00 (5.2) |
10-15 |
|
2 (7.6) |
0.40 (6.6) |
4500 |
2500 (172) |
7.30 (27.6) |
13.6 (10.1) |
||
|
3 (11.4) |
0.60 (9.8) |
4000 |
2500 (172) |
9.40 (35.6) |
17.8 (13.3) |
||
|
4 (15.1) |
0.80 (13.1) |
3400 |
2500 (172) |
10.9 (41.3) |
20.4 (15.2) |
||
|
5 (18.9) |
1.00 (16.4) |
3200 |
2500 (172) |
12.8 (48.5) |
22.8 (17) |
||
|
6 (23.1) |
1.19 (19.5) |
3000 |
2200 (152) |
14.6 (55.3) |
24.5 (18.3) |
||
|
7 (27.2) |
1.39 (22.8) |
2800 |
2000 (138) |
16.0 (60.6) |
24.0 (17.9) |
||
|
V20 |
6 (23.5) |
1.19 (19.5) |
3400 |
2500 (172) |
16.1 (60.9) |
29.0 (21.6) |
16-18 |
|
7 (26.9) |
1.39 (22.8) |
3000 |
2500 (172) |
16.7 (63.2) |
29.5 (22) |
||
|
8 (31) |
1.62 (26.5) |
2800 |
2500 (172) |
17.7 (67) |
32.5 (24.2) |
||
|
9 (34.8) |
1.80 (29.7) |
2800 |
2500 (172) |
19.8 (75) |
35.5 (26.5) |
||
|
11 (43.5) |
2.22 (36.4) |
2500 |
2500 (172) |
22.9 (86.7) |
37.5 (28) |
||
|
12 (45.4) |
2.38 (39) |
2400 |
2200 (152) |
23.0 (87.1) |
36.0 (26.8) |
||
|
13 (51.1) |
2.59 (42.4) |
2400 |
2200 (152) |
25.9 (98) |
39.0 (29.1) |
||
|
Double vane pump parameters |
|||||||
|
Vane pump |
Delivery at 1200 r/min & 7 bar (100 psi) US gpm |
Geometric Displacement |
Delivery |
Maximum |
Maximum |
Minimum |
Weight |
|
V2010 |
Shaft End |
7 |
22.8 (1.39) |
33.11 (8.75) |
172 (2500) |
3000 |
13.6 (30) |
|
8 |
26.5 (1.62) |
37.85 (10.00) |
172 (2500) |
2800 |
|||
|
9 |
29.7 (1.81) |
42.57 (11.25) |
172 (2500) |
2800 |
|||
|
11 |
36.4 (2.22) |
52.04 (13.75) |
172 (2500) |
2500 |
|||
|
12 |
39.0 (2.38) |
56.77 (15.00) |
152 (2200) |
2400 |
|||
|
13 |
42.4 (2.59) |
61.50 (16.25) |
152 (2200) |
2400 |
|||
|
Cover End |
1 |
3.3 (0.20) |
4.70 (1.25) |
172 (2500) |
3000 |
||
|
2 |
6.6 (0.40) |
9.40 (2.50) |
172 (2500) |
3000 |
|||
|
3 |
9.8 (0.60) |
14.20 (3.75) |
172 (2500) |
3000 |
|||
|
4 |
13.1 (0.80) |
18.90 (5.00) |
172 (2500) |
3000 |
|||
|
5 |
16.4 (1.00) |
23.60 (6.25) |
172 (2500) |
3000 |
|||
|
6 |
19.5 (1.19) |
28.40 (7.50) |
152 (2200) |
3000 |
|||
|
7 |
22.8 (1.39) |
33.10 (8.75) |
138 (2000) |
2800 |
|||
|
V2020 |
Shaft End |
7 |
22.8 (1.39) |
33.11 (8.75) |
172 (2500) |
3000 |
15.9 (35) |
|
8 |
26.5 (1.62) |
37.85 (10.00) |
172 (2500) |
2800 |
|||
|
9 |
29.7 (1.81) |
42.57 (11.25) |
172 (2500) |
2800 |
|||
|
11 |
36.4 (2.22) |
52.04 (13.75) |
172 (2500) |
2500 |
|||
|
12 |
39.0 (2.38) |
56.77 (15.00) |
152 (2200) |
2400 |
|||
|
13 |
42.4 (2.59) |
61.50 (16.25) |
152 (2200) |
2400 |
|||
|
Cover End |
6 |
19.5 (1.19) |
28.39 (7.50) |
172 (2500) |
3000 |
||
|
7 |
22.8 (1.39) |
33.11 (8.75) |
3000 |
||||
|
8 |
26.5 (1.62) |
37.85 (10.00) |
2800 |
||||
|
9 |
29.7 (1.81) |
42.57 (11.25) |
2800 |
||||
|
11 |
36.4 (2.22) |
52.04 (13.75) |
2500 |
||||
Key Benefits of Vane Pumps
Constant Flow and Efficiency
One of the primary advantages of vane pumps is their ability to deliver a constant flow regardless of the system pressure. Unlike other pump types that may experience flow fluctuations, rotary vane pumps maintain a steady output with each rotation, which is crucial in applications requiring precise fluid delivery speed. This constant flow characteristic makes vane pumps highly efficient and reliable in various industrial settings.
Versatility in Applications
Vane pumps are incredibly versatile, capable of handling a wide range of fluids, including those with varying viscosities. This adaptability makes them suitable for numerous industrial applications, from automotive lubrication systems to chemical processing. Their ability to handle different liquid types, including corrosive and abrasive materials, further underscores their flexibility.
Compact Design and Ease of Maintenance
The design of rotary vane pumps is relatively simple, manufactured with fewer moving parts when compared to gear pumps. This simplicity translates into a more compact design, making vane pumps ideal for installations where space is a premium. Additionally, the reduced number of components means less wear and tear, resulting in lower maintenance requirements and costs.
Two-Stage Pumping for Enhanced Performance
Many vane pumps are designed as two-stage pumps, enhancing their speed and performance by allowing for higher pressure and improved efficiency. In a two-stage rotary vane pump, the fluid undergoes two distinct pumping phases, which helps achieve greater compression and smoother operation. This feature is particularly beneficial in applications requiring high-pressure delivery.
Self-Priming Capability
Vane pumps possess excellent self-priming capabilities, enabling them to use centrifugal force to remove air from the lines and start pumping without the need for manual priming. This self-priming feature ensures quicker start-ups and reduces downtime, which is crucial in continuous industrial operations.
Reduced Noise and Vibration
Compared to other positive displacement pumps, such as gear pumps, vane pumps operate with significantly less noise and vibration. The smooth, continuous motion of the vanes within the cylindrical housing minimizes pulsations, leading to quieter and more stable pump operation. This characteristic is particularly important in environments where noise reduction is a priority.
Key Attributes and Design Variations
1.Vane pumps are known for their excellent volumetric efficiency and self-priming capabilities.
2.They offer consistent flow rates and are capable of handling various viscosities, from thin fluids to thicker substances.
3.Vane pumps are available in different designs, such as balanced vane pumps and unbalanced vane pumps.
4.Balanced vane pumps feature equalized hydraulic forces, minimizing wear and improving overall efficiency.
5.Unbalanced vane pumps are simpler in design and more cost-effective for less demanding applications.
Types of Vane Pumps
Vane pumps are classified into different types based on their design and specific applications, with rotary vane pumps being one of the most prominent types. These pumps are distinguished by their capability to maintain a consistent flow rate and operate at high efficiencies, making them ideal for various industrial and automotive applications. Here are some of the types of vane pumps:
Fixed Displacement Vane Pumps
These pumps have a fixed flow rate and are typically used in circuits requiring constant flow. They are more straightforward in design and are often used in moderate-pressure applications.
Variable Displacement Vane Pumps
These are more complex and allow the flow rate and output pressure to be adjusted according to system requirements. They are used in applications that require variable flow and pressure.
Balanced Vane Pumps
These pumps’ balanced design reduces the load on the pump bearings, helping to extend the pump’s life even under high-pressure conditions.
Vane Materials
Vanes can be made from a variety of materials, each with its own advantages and limitations:
Metal Vanes:
Commonly made from materials like steel or aluminum, metal vanes are durable and suitable for handling a wide range of fluids, including those with high viscosity and temperature.
Plastic Vanes:
Plastic vanes are lightweight and corrosion-resistant. They are often used for applications involving chemicals that may corrode metal components.
Composite Vanes:
Composite vanes are a combination of materials, such as carbon fiber or graphite, embedded in a polymer matrix. They offer a balance of strength and corrosion resistance.
After Sales Service
We guarantee Vane Pump quality for 12 months,we will maintenance quality problems for free in the warranty and providetechnical support in the whole production life.
Packaging And Delivery
| Selling Units: | Single item |
| Single package size: | 49X28X28.5 cm |
| Single gross weight: | 60.000 kg |
