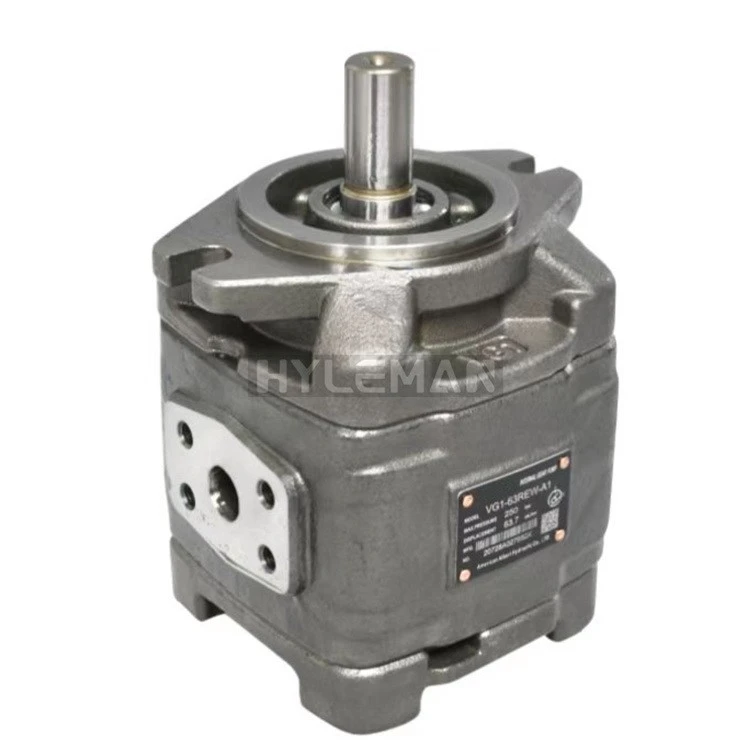

Small Gear Pump

Hot sale servo pump Rexroth small gear pump PGH Series Pgh4-3X/040re11vu2 Hydraulic Gear Pump Pgh4-30/040re11vu2





1.Using axial and radial pressure compensation design, even at low speed and low viscosity still maintain a high volumetric efficiency.
2. Ultra-low noise, using high strength cast iron and internal unique silencing design, to decline the noise lower.
3. Very low flow and pressure pulsation, at low speed still can maintain stable flow and pressure output.
4. High pressure design, the maximum pressure up to 35Mpa.
5. A wide range of speed, the maximum speed up to 3000r/min, low speed 50 r/min.
6. Can be arbitrarily combined to make a double pump.
7. Not sensitive to oil pollution, long service life.
8. Can be widely used in industry, such as plastic machine, shoe machine, die-casting machinery and forklift and other industries of the hydraulic system, allows it to be used in the servo frequency conversion drive energy saving system.





VG0 equal to PGH3, VG1 equal to PGH1, VG2 equal to PGH3
Single pumps: VG0-8,10,13,16,20; VG1- 25, 32, 40, 50, 63; VG2-80,100,125,145,160
Double pumps: VG21,32, 31-( 25,32, 40, 50, 63, 80,100,125,145,160 ), ( 25,32, 40, 50, 63, 80,100,125,145,160 )









SIZE	DISP. cc/rev	PRESSURE bar		ROTATING SPEED r/min
		Rated	Max	Max	Min
HG0-10-01R-VPC	10	10	315	350	3000	600
HG0-13-01R-VPC	13	13.3	315	350	3000	600
HG0-16-01R-VPC	16	16	315	350	3000	600
HG0-20-01R-VPC	20	20	315	350	3000	600
HG1-25-01R-VPC	25	25.3	315	350	3000	200
HG1-32-01R-VPC	32	32.7	315	350	3000	200
HG1-40-01R-VPC	40	40.1	315	350	3000	200
HG1-50-01R-VPC	50	50.7	315	350	3000	200
HG1-63-01R-VPC	63	53.7	315	350	3000	200
HG2-80-01R-VPC	80	81.4	315	350	3000	200
HG2-100-01R-VPC	100	100.2	315	350	3000	200
HG2-125-01-VPC	125	125.3	315	350	3000	200
HG2-160-01-VPC	160	162.8	210	260	3000	200



More models:

HG0-8-01R-VPC	HG0-10-01R-VPC	HG0-13-01R-VPC	HG0-16-01R-VPC
HG1-25-01R-VPC	HG1-32-01R-VPC	HG1-40-01R-VPC	HG1-50-01R-VPC
HG1-63-01R-VPC	HG0-20-01R-VPC	HG2-80-01R-VPC	HG2-100-01R-VPC
HG2-125-01R-VPC	HG2-160-01R-VPC	HG21-80-25-01R-VPC	HG22-160-80-01R-VPC
HG10-63-20-01R-VPC	HG10-63-16-01R-VPC	HG10-63-13-01R-VPC	HG10-63-10-01R-VPC
HG10-63-8-01R-VPC	HG10-50-8-01R-VPC	HG10-40-8-01R-VPC	HG10-32-8-01R-VPC
HG10-50-20-01R-VPC	HG10-50-16-01R-VPC	HG10-50-13-01R-VPC	HG10-50-10-01R-VPC
HG10-40-20-01R-VPC	HG10-40-16-01R-VPC	HG10-40-13-01R-VPC	HG10-40-10-01R-VPC
HG10-32-20-01R-VPC	HG10-32-16-01R-VPC	HG10-32-13-01R-VPC	HG10-32-10-01R-VPC
HG10-25-20-01R-VPC	HG10-25-16-01R-VPC	HG10-25-13-01R-VPC	HG10-25-10-01R-VPC
HG10-25-8-01R-VPC	HG11-63-25-01R-VPC	HG11-63-63-01R-VPC	HG11-63-50-01R-VPC
HG11-50-50-01R-VPC	HG11-50-40-01R-VPC	HG11-63-40-01R-VPC	HG11-63-32-01R-VPC
HG11-50-32-01R-VPC	HG11-50-25-01R-VPC	HG21-160-25-01R-VPC	HG21-125-25-01R-VPC
HG21-160-63-01R-VPC	HG21-160-50-01R-VPC	HG21-160-40-01R-VPC	HG21-160-32-01R-VPC
HG21-125-63-01R-VPC	HG21-125-50-01R-VPC	HG21-125-40-01R-VPC	HG21-125-32-01R-VPC
HG21-80-63-01R-VPC	HG21-80-50-01R-VPC	HG21-80-40-01R-VPC	HG21-80-32-01R-VPC
HG22-160-160-01R-VPC	HG22-160-125-01R-VPC	HG22-160-100-01R-VPC

















1. Top Quality
Depend on 20 years experience at hydraulic pumps design, research, development and manufacturing, we have a top quality compared with domestic and overseas manufacturers, all of our products are with 1 year warranty time.

2. Strict Quality Control System
We have the most strict quality control system, all of our products are 100% tested before shipment and each of them has one tracking code in order to make sure they are with good quality to our customers.

3. Advanced machinery equipment
All the machines we have are new CNC machines we imported from Germany and Japan in order to reach more higher demand at the products accuracy.
