Hydraulic Plunger Pump

Your Professional Hydraulic Plunger Pump Supplier

Ningbo Hyleman Hydraulics Co., Ltd is a scientific and innovative company integrating R & D, production, sales and service of high-quality hydraulic pumps, motors, gear reducers and other hydraulic products.Hyleman mainly supply A10V, A4V, A4VG, A11V, A15V, A20V,A2FO,A2FM, A6VM, PV, PVP, PVAC, PVB, PVQ, PVH series piston pumps and motors ; T6,T7,V,VQ, M5A, M5B, M4C, M4D, M4E, 25M, 35M, 45M, 50M series vane pumps and motors;C101/102, G101/102, PGP/PGM, 30/31,50/51, 75/76 series gear pumps and motors.

First 12 Last 1/2

Why choose us

QUALITY ASSURANCE

GOOD SERVICE

Hyleman are devoting to provide our clients with the best quality products, and the comprehensive solutions of hydraulics.

PRODUCT APPLICATION

Hyleman series products are widely used in engineering machinery, plastic machinery, metallurgical machinery, environmental sanitation machinery, mining machinery, marine machinery, packaging machinery, port machinery and various hydraulic equipment, which are highly praised by clients.

PRODUCT EXPORT

Through the honing and innovation of Hyleman people, Hyleman series products can not only perfectly replace the original products, but also realize the seamless exchange and connection of all the parts. Hyleman products have been exported to more than 70 countries and regions around the world.

Hydraulic Plunger Pump

The plunger pump is the power element of the hydraulic transmission and control system.The engine (motor) conducts mechanical energy to the plunger pump, and drives the plunger to reciprocate in the plunger pump cylinder, so that the volume of the closed working chamber is changed to achieve oil suction and oil pressure, and finally the mechanical energy is converted into hydraulic oil Pressure energy provides hydraulic power for the hydraulic system. The plunger pump is a kind of hydraulic pump. Compared with other types of hydraulic pumps such as vane pumps and gear pumps, it has the advantages of high rated pressure, compact structure, high precision, good sealing, high efficiency and convenient flow adjustment. It is suitable for application scenarios that require stable high-pressure hydraulic systems, and is widely used in high-end equipment manufacturing and use fields.

Specification

Product parameter
Products name:	Hydraulic Piston Pump	Part NO.:	A4VSO
SIZE:	OEM Size	After Warranty Service:	Online support, Spare parts
Applicable Industries:	Machinery Repair Shops, Retail, Construction works	Local Service Location:	None
Brand Name:	FQ	Warranty:	1 Year
Application:	Excavator	Product description:	Diesel engine
PART NO.:	N/A	MOQ:	2 pcs
Delivery time:	Within 3 days after receive payment	After-sales Service Provided:	Online support, Engineers available to service machinery overseas, Free spare parts
Prices Advantage:	Manufacure	Factory frice:	Wholesale
Place of Origin:	Hubei China	Packing:	Wooden case/ Plywood/ Carton
Please contact us if you have any questions

Specification

Size				18	28	45	71	88	100	140	45	71	100	140
Version				Standard							Specification
Displacement		Vg max	cm³	18	28	45	71	88	100	140	45	71	100	140
Geometric, per revolution		Vg max	cm³	18	28	45	71	88	100	140	45	71	100	140
Nominal pressure		Pnom	bar	280	280	280	280	280	280	280	280	280	280	280
Maximum pressure		Pmax	bar	350	350	350	350	350	350	350	350	350	350	350
Maximum speed 1)	At Vg max	Nnom	rpm	3300	3000	2600	2200	2100	2000	1800	3000	2550	2300	2050
Flow	At Vg max and nnom	QV nom	l/min	59	84	117	156	185	200	252	135	178	230	287
Flow	At Vg max and n = 1500 rpm	QV 1500	l/min	27	42	68	107	132	150	210	68	107	150	210
Power	At qV nom and pnom	P	kW	30	39	55	73	86	93	118	63	83	107	134
Power	At qV 1500 and pnom	P 1500	kW	12.6	20	32	50	62	70	98	32	50	70	98
Torque	At Vg max and pnom	M	Nm	80	125	200	316	392	445	623	200	316	445	623
Weight (approx.)		m	kg	12.9	18	23.5	35.2	35.2	49.5	65.4	23.5	35.2	49.5	65.4

Working principle of piston pump

The piston pump is divided into two representative structural forms: axial piston pump and radial piston pump; Because radial piston pump is a new type of high-efficiency pump with high technology content, radial piston pump will become an important part of the application field of piston pump; Radial piston pump is a kind of piston pump whose reciprocating motion direction is perpendicular to the driving shaft.The oil flow in and out of the pump body and the flow passage on the valve shaft are controlled by the oil suction port on the valve shaft. The liquid pressure generated in the pump body is absorbed by the surface of static pressure balance.

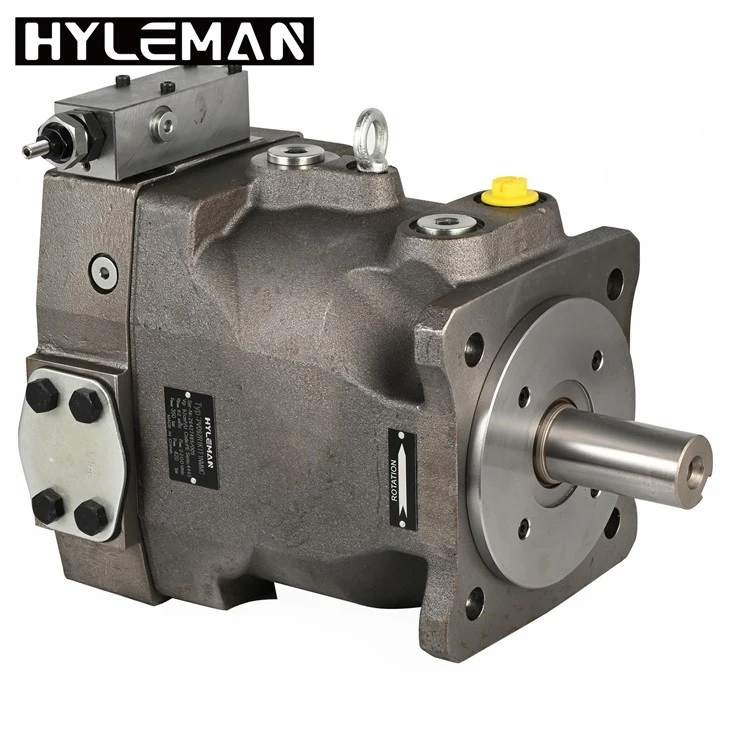

Parker PV PV020 PV023 PV028 Variable Displacement Axial Piston Pump Plunger Pump Hydraulic Pump For Excavator

Efficiency and flow rate considerations

Flow Rate Range:

Generally ranges from 0.5 GPM to over 600 GPM depending on model and application specifications.

Pressure Capabilities:

Operates from 500 PSI to 10,000 PSI and above while supporting high pressure applications with minimal energy loss.

Adjustable Performance:

The Flow rate is controlled by changing the length of the plunger’s stroke or the pump’s speed, providing precise fluid control.

Durability and maintenance requirements

Seal Replacement:

Depending on the working conditions and the users’ needs, seals can be replaced whenever they are required. Heavy-duty applications will most likely require replacements after 2,000 to 8,000 hours.

Plunger Wear Assessment:

Plungers suffer from efficiency loss due to surface wears that may cause shifts in the gears. For example, hard-coated (ceramic coated) plungers don’t suffer from wears as easily hence, lasts longer, and is ideal for times when efficiency needs to be preserved.

Lubrication:

The crankcase, along with the bearings, must receive ample lubrication. Along with that, high-grade lubricants need to be applied and changed after 500 – 1,000 operational hours or else those components will not function properly.

FAQ

Q: How about the quality of the managements?

A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: Can you offer OEM or design services?

A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.

Q: What are your terms of payment and delivery time?

A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.

Q: How about warranty?

A: 12 months warranty.

As one of the most professional hydraulic plunger pump manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to wholesale high-grade hydraulic plunger pump made in China here from our factory. High Pressure Plunger Pump, Parker PV Piston Pump, Axial Piston Pump Plunger Pump
