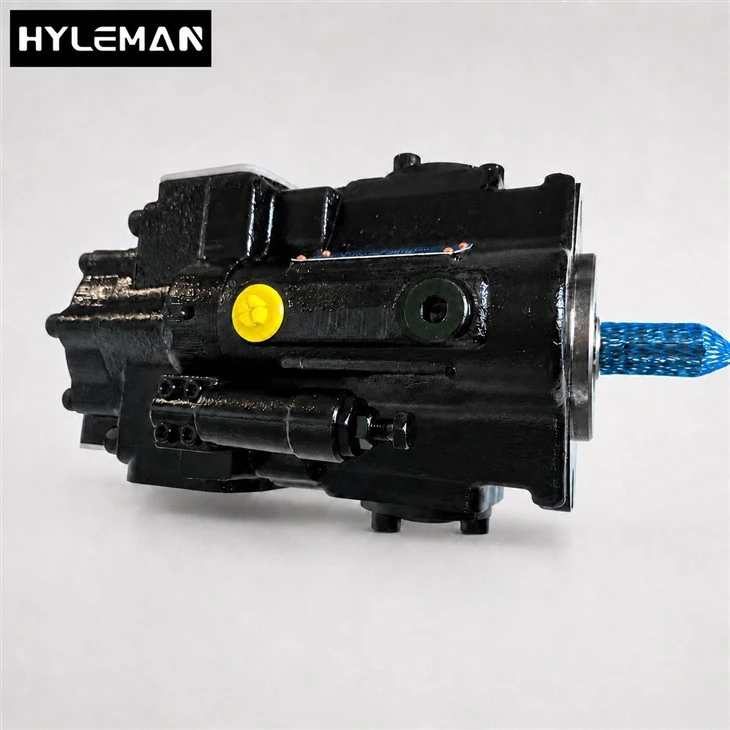

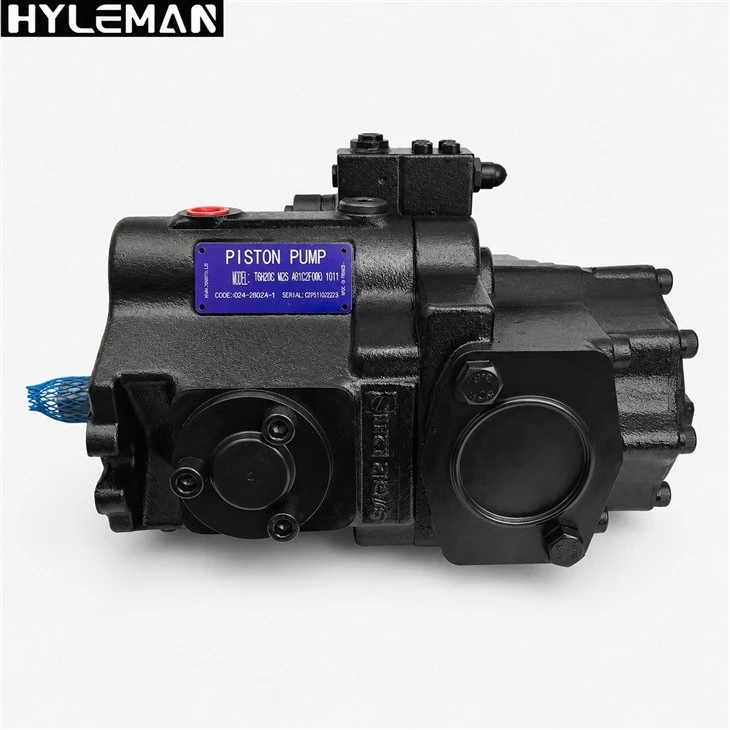

T6H29DB Triple Hybrid Piston And Vane Pump With Three Independent Outlets

HYLEMAN T6H series hybrid pumps combine a variable displacement piston pump with one or two fixed displacement vane pump cartridges in a compact common housing.

The piston and vane sections are driven by a common shaft and share one common suction port, while providing two or three independent pressure outlets. This design allows the main working circuit, steering circuit and auxiliary hydraulic functions to operate simultaneously.

The series includes T6H20B, T6H20C, T6H29B, T6H29C, T6H29D and T6H29DB configurations, covering piston displacements of 42.9 and 61.9 ml/rev and vane pump displacements from 5.8 to 158 ml/rev.

The pumps are suitable for mobile machinery and industrial hydraulic systems requiring compact installation, high pressure, low noise and multiple independent flow outputs.
