Positive Displacement Piston Pump

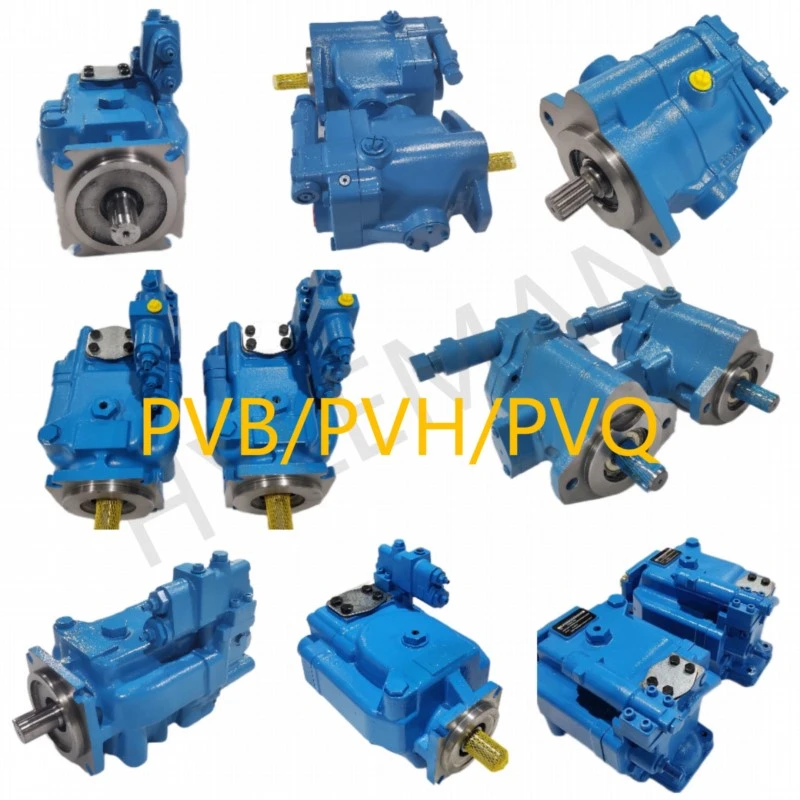

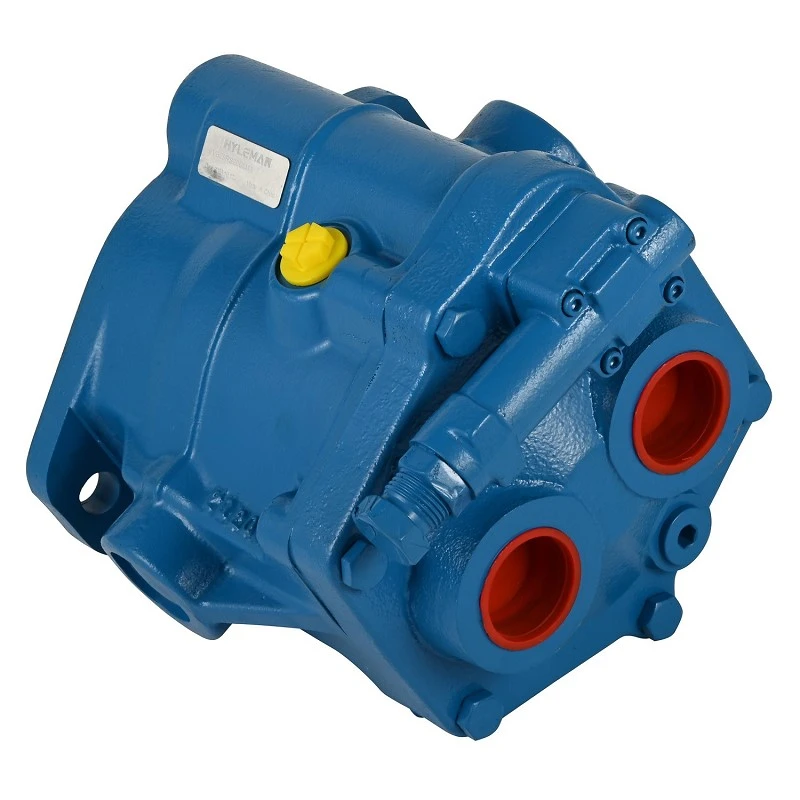

Eaton Vickers positive displacement piston pump PVQ PVH PVB Series PVB45-Rsf-11-Cm-10
All of HYLEMAN products are completely equivalent and interchangeable with the original.





Vickers PVB series axial piston pumps and motors which manufactured and introduced by original Vickers. It is featured with long service life, high efficiency, quiet and small volume. Moreover, it suit for a variety kinds of fluid medium. It has been widely used in industrial machinery and automobile industry.





High performance ratings and efficiencies

•Closely match pressure and/or flow demand with a control selected from:

•Pressure compensator with or without a remote control facility.

•Pressure compensator with adjustable displacement control.

• Load sensing compensator. Mechanical (lever) control. Handwheel control



Hydraulic Vickers piston pump PVB series
PVB5	PVB10RSY31C11
PVB6	PVB10LSY31C11
PVB10	PVB15RSY31CMC11
PVB15	PVB15LSY31CMC11
PVB20	PVB20RSY20C11
PVB29	PVB20LSY20C11
PVB45	PVB20RSY20C11
PVB5RSY20C11	PVB29RS20CMC11
PVB5RSY20C11	PVB45FRSF20C11
PVB6RSY20C11	PVB45RSF20C11
PVB6LSY20C11









Basic models	V:Variable displacement type
Displacement	6 15 29 45 90
Foot mounting option	F = Foot mounting option for PVB45 and PVB90 models.
	Omit for flange mounting
Mounting Flange	M = Metric, to DIN/ISO 3019, Part 2 and VDMA 24560, Part 1
	Omit for SAE mounting flange
Shaft rotation	R = Clockwise L = Anticlockwise (not available for PFB10 and PFB20)
Displacement zone	S = One side of center (pressure compensated models only)
	D = Both sides of center (Handwheel and lever controlled models only)
Flanged main ports	F = PVB45 and PVB90 models only.
Thru shaft option	PVB5 to 29 only: X = Thru shaft (with side entry ports)
	Omit for PVB45 and PVB 90, or if not required A.4
Shaft type	N = Metric, to DIN/ISO 3019, Part 2 and VDMA 24560, Part 1
	Y = SAE models P*B5 to 15 only
	Omit for 20 thru 90 models
Pump design number	31 = PVB10 and PVB15 20 = all other models
Displacement control options	C CM CVP H M V
Maximum displacement	PVB5 to 29 models only:
adjustment	C = "C" or "CM"compensator
	Omit when not required.
Compensator	Standard Pressure compensator;
	Power compensator;
	Electrohydraulic compensator
Pressure compensator variations	PVB5 to 29 models only:
	G = Remotely adjustable pressure setting.
	Omit when not required
Control location	PVB5 to 15 models with "H", "M" or "V" controls only:
	L = Left hand, when viewed at shaft end.
	Omit for right hand, or when a pressure compensator is fitted.
Control design number	10 11 12 20
Special design options	For PFB5 and PVB5 to 29 only:.S.30
	For PVB5 to PVB29 pressure compensated models only:GE1
	For all models: GEVS
	Omit when not required.
Max Pressure	21MPa

















1.Quick response within 12 hours

2.Accept small order(MOQ:1pcs)

3.Custom service.Unusual packaging,standard packing or as customer required

4.Excellent after-sales service

5.Strict quality control system.100% factory testing and inspection personnel in accordance with international standards for the high-frequency sampling, to ensure the quality of products manufactured

6.Accept ODM&OEM
