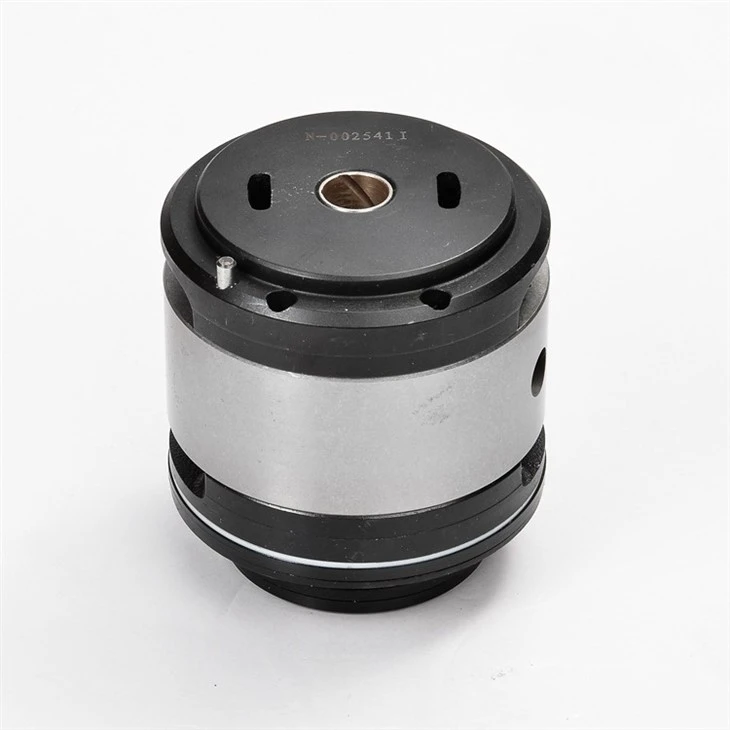

Parker T6 T7 Series Vane Pump Cartridge T6C T6D T6E T7B T7D T7E
hydraulic vane pump cartridge kit Compatible with Parker Veljan Materis Denison T6C T6D T6E T7B T7D T7E
All of HYLEMAN products are completely equivalent and interchangeable with the original.
Features
1.Intra-vane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Various displacement and shafts with 4 different outlet opposite position make operation more flexible.
4.The cartridge is independent of the drive shaft,allowing for easy servicing without remore the pump from its mounting.
Detailed pictures
Model Description
| T6,T7 Series- cartridge | ||||
| Cartridge name | Series | Flow code | Rotation | Sealing Level |
| Single pump cartridge Front cartridge Front cartridge of double or treble pump Middle cartridge Middle cartridge of treble pump Rear cartridge Rear cartridge of double or treble pump |
T7B(S),17BB(S),T67CB, T67DB,T67EB,T67DBB, T67DCB,T67DDBS,T67EDB |
B02 B03 B04 B05 B06 B07 B08 B10 B12 B15 | R-right hand for clockwise L-left hand for counter clockwise |
S1 NBR 5-S5 FKM |
|
T7B |
S |
-B10 |
-1 |
R |
00 |
-A |
1 |
01 |
|
Series |
Type Code |
Flow code |
Shaft type |
Rotation |
Outlet positions |
Design number |
Sealing Level |
Port dimensions |
|
T7B |
ISO 3019 Installation Flange S:SAE J744 installation flange |
B02,B03,B04,B05, B06,B07,B08,B10, B12,B15,B20 |
See of shaft |
(Viewed from shaft end of pump) R- right hand for clockwise L- left hand for counter- clockwise |
(Viewed from shaft end of pump) 00- Opposite inlet port 01- Inline with inlet 02-90° 90°CCW from inlet 03-90° 90°CW from inlet |
A |
1-S1, NBR Nitrile rubber 5-S5, Fluororubber |
00,01,See installation dimensions |
|
T7D |
B14,B17,B20,B22,B24, B28,B31,B35,B38,B42 |
No |
||||||
|
T7E |
042,045,050,052,054, 057,062,066,072,085 |
|||||||
|
T6C |
NO: industrial type M:truck type P:truck type double seal kits |
003/B03,005/B05,006/B06, 008/B08,010/B10,012/B12, 014/B14,017/B17,020/B20, 022/B22,025/B25,028/B28, 031/B31 |
||||||
|
T6D |
014/B14,017/B17,020/B20, 024/B24,028/B28,031/B31, 035/B35,038/B38,042/B42, 045/B45,050/B50,061 |
|||||||
|
T6E |
042,045,050,052,057, 062,066,072,085 |
|
series |
Flow code (USgpm) |
Geometric displace- ment mL/r |
Max.pressure Mpa |
/Max.speed r/min |
Min. speed r/min |
||||||
|
Antiwear hydraulic oil |
General hydraulic oil or phosphate ester fluid |
Water glycol fluid or water-oil emulsions |
General hydraulic oil or antiwear hydraulic oil |
Water glycol fluid or phosphate ester fluid or water-oil emulsions |
|||||||
|
|
|
|
|
|
|
||||||
|
Instant |
Continuous |
Instant |
Continuous |
Instant |
Continuous |
||||||
|
T7B T7BS |
B02 |
5.8 |
35 |
32 |
24 |
21 |
17.5 |
14 |
3600 |
1800 |
600 |
|
B03 |
9.8 |
||||||||||
|
B04 |
12.8 |
||||||||||
|
B05 |
15.9 |
||||||||||
|
B06 |
19.8 |
||||||||||
|
B07 |
22.5 |
||||||||||
|
B08 |
24.9 |
||||||||||
|
B10 |
31.8 |
||||||||||
|
B12 |
41.0 |
30 |
27.5 |
24 |
21 |
17.5 |
14 |
3000 |
1800 |
600 |
|
|
B15 |
50.0 |
28 |
24 |
||||||||
|
B20 |
63.0 |
||||||||||
|
T7D T7DS |
B14 |
44.0 |
30 |
25 |
24 |
21 |
17.5 |
14 |
3000 |
1800 |
600 |
|
B17 |
55.0 |
||||||||||
|
B20 |
66.0 |
||||||||||
|
B22 |
70.3 |
||||||||||
|
B24 |
81.1 |
||||||||||
|
B28 |
90.0 |
||||||||||
|
B31 |
99.2 |
||||||||||
|
B35 |
113.4 |
28 |
25 |
24 |
21 |
17.5 |
14 |
2800 |
1800 |
600 |
|
|
B38 |
120.6 |
||||||||||
|
B42 |
137.5 |
26 |
23 |
24 |
21 |
17.5 |
14 |
2500 |
1800 |
600 |
|
|
T7E T7ES |
042 |
132.3 |
24 |
21 |
21 |
17.5 |
17.5 |
14 |
2200 |
1800 |
600 |
|
045 |
142.4 |
||||||||||
|
050 |
158.5 |
||||||||||
|
052 |
164.8 |
||||||||||
|
054 |
171.0 |
||||||||||
|
057 |
183.3 |
||||||||||
|
062 |
196.7 |
||||||||||
|
066 |
213.3 |
||||||||||
|
072 |
227.1 |
||||||||||
|
085 |
268.7 |
9 |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
2000 |
1800 |
600 |
|
