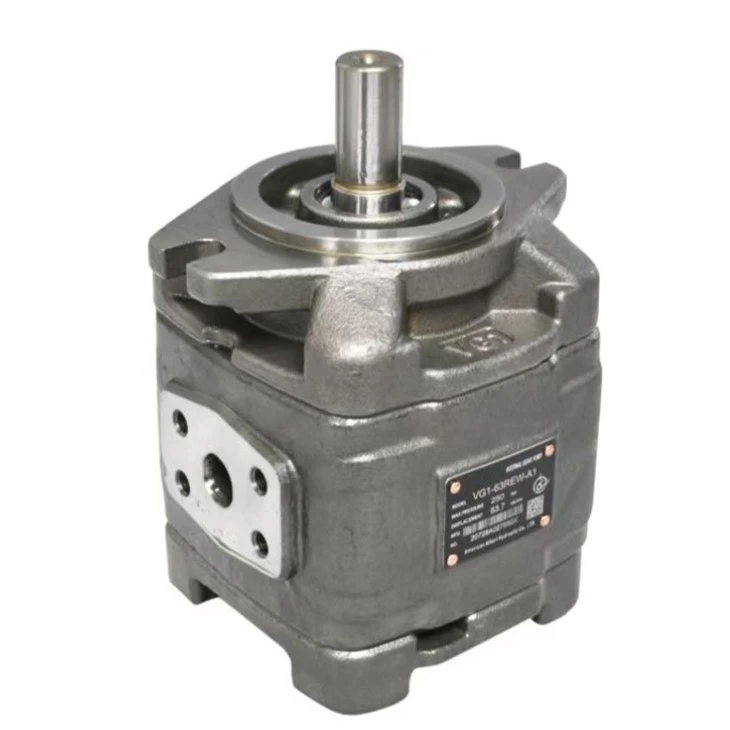

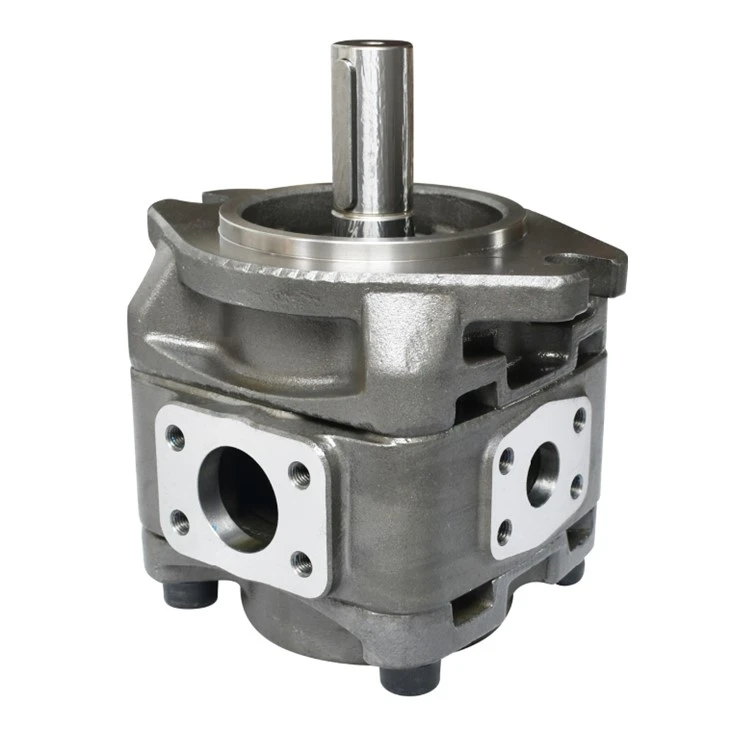

HYLEMAN HG0 Small Hydraulic Gear Pump
HYLEMAN HG0 small hydraulic gear pump
Features
Model available
HG0 equal to PGH3, HG1 equal to PGH1, HG2 equal to PGH3
Single pumps: HG0-8,10,13,16,20; HG1- 25, 32, 40, 50, 63; HG2-80,100,125,145,160

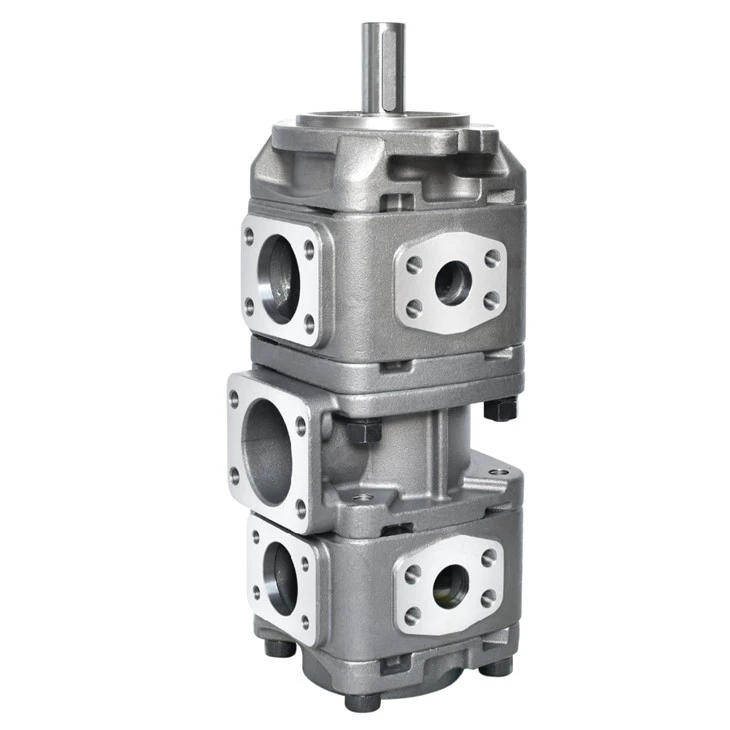

Double pumps: HG21,32, 31-( 25,32, 40, 50, 63, 80,100,125,145,160 ), ( 25,32, 40, 50, 63, 80,100,125,145,160 )
Detailed pictures
Model Description
| SIZE | DISP. cc/rev | PRESSURE bar | ROTATING SPEED r/min | |||
| Rated | Max | Max | Min | |||
| HG0-10-01R-VPC | 10 | 10 | 315 | 350 | 3000 | 600 |
| HG0-13-01R-VPC | 13 | 13.3 | 315 | 350 | 3000 | 600 |
| HG0-16-01R-VPC | 16 | 16 | 315 | 350 | 3000 | 600 |
| HG0-20-01R-VPC | 20 | 20 | 315 | 350 | 3000 | 600 |
| HG1-25-01R-VPC | 25 | 25.3 | 315 | 350 | 3000 | 200 |
| HG1-32-01R-VPC | 32 | 32.7 | 315 | 350 | 3000 | 200 |
| HG1-40-01R-VPC | 40 | 40.1 | 315 | 350 | 3000 | 200 |
| HG1-50-01R-VPC | 50 | 50.7 | 315 | 350 | 3000 | 200 |
| HG1-63-01R-VPC | 63 | 53.7 | 315 | 350 | 3000 | 200 |
| HG2-80-01R-VPC | 80 | 81.4 | 315 | 350 | 3000 | 200 |
| HG2-100-01R-VPC | 100 | 100.2 | 315 | 350 | 3000 | 200 |
| HG2-125-01-VPC | 125 | 125.3 | 315 | 350 | 3000 | 200 |
| HG2-160-01-VPC | 160 | 162.8 | 210 | 260 | 3000 | 200 |
More models:
|
HG0-8-01R-VPC |
HG0-10-01R-VPC |
HG0-13-01R-VPC |
HG0-16-01R-VPC |
|
HG1-25-01R-VPC |
HG1-32-01R-VPC |
HG1-40-01R-VPC |
HG1-50-01R-VPC |
|
HG1-63-01R-VPC |
HG0-20-01R-VPC |
HG2-80-01R-VPC |
HG2-100-01R-VPC |
|
HG2-125-01R-VPC |
HG2-160-01R-VPC |
HG21-80-25-01R-VPC |
HG22-160-80-01R-VPC |
|
HG10-63-20-01R-VPC |
HG10-63-16-01R-VPC |
HG10-63-13-01R-VPC |
HG10-63-10-01R-VPC |
|
HG10-63-8-01R-VPC |
HG10-50-8-01R-VPC |
HG10-40-8-01R-VPC |
HG10-32-8-01R-VPC |
|
HG10-50-20-01R-VPC |
HG10-50-16-01R-VPC |
HG10-50-13-01R-VPC |
HG10-50-10-01R-VPC |
|
HG10-40-20-01R-VPC |
HG10-40-16-01R-VPC |
HG10-40-13-01R-VPC |
HG10-40-10-01R-VPC |
|
HG10-32-20-01R-VPC |
HG10-32-16-01R-VPC |
HG10-32-13-01R-VPC |
HG10-32-10-01R-VPC |
|
HG10-25-20-01R-VPC |
HG10-25-16-01R-VPC |
HG10-25-13-01R-VPC |
HG10-25-10-01R-VPC |
|
HG10-25-8-01R-VPC |
HG11-63-25-01R-VPC |
HG11-63-63-01R-VPC |
HG11-63-50-01R-VPC |
|
HG11-50-50-01R-VPC |
HG11-50-40-01R-VPC |
HG11-63-40-01R-VPC |
HG11-63-32-01R-VPC |
|
HG11-50-32-01R-VPC |
HG11-50-25-01R-VPC |
HG21-160-25-01R-VPC |
HG21-125-25-01R-VPC |
|
HG21-160-63-01R-VPC |
HG21-160-50-01R-VPC |
HG21-160-40-01R-VPC |
HG21-160-32-01R-VPC |
|
HG21-125-63-01R-VPC |
HG21-125-50-01R-VPC |
HG21-125-40-01R-VPC |
HG21-125-32-01R-VPC |
|
HG21-80-63-01R-VPC |
HG21-80-50-01R-VPC |
HG21-80-40-01R-VPC |
HG21-80-32-01R-VPC |
|
HG22-160-160-01R-VPC |
HG22-160-125-01R-VPC |
HG22-160-100-01R-VPC |
|
