P30/P31 Hydraulic Gear Pump&Motor

P30/P31 Hydraulic Gear Pump&Motor for Skid Steer Loader, Crawler Excavator, Tractor

HYLEMAN corporation specializes in Hydraulic Gear Pump / Piston Pump / Vane Pump / Piston Motor and Slewing Gear Boxes manufacturing, sales and development. Our products are widely used at Marine, Mining Machinery, Construction Machinery, Agricultural Machinery, Forestry Machinery, Steel Industry and so on. We pursuit to be the global leading hydraulic motors and pumps manufacturer and service provider. Customer first is one of our key value. We appreciate cooperating with friends from all over the world.



P30/31 Series Bearing - SAE A 2 Bolt Cast Iron with OB Bearing Gear Pump CW

Stock No.	Gear Width	Code	Displacement cc/rev	Displacement cu.in/rev	Pressure Bar	Weight KG
P31A494-05	1/2″	05	16	0.985	200	13
P31A494-07	3/4″	07	24	1.47	200	14
P31A494-10	1″	10	32	1.97	200	14.5
P31A494-12	1-1/4″	12	40	2.46	200	15
P31A494-15	1-1/2″	15	48	2.95	200	15.5
P31A494-17	1-3/4″	17	56	3.44	180	16
P31A494-20	2″	20	64	3.94	180	16.5
P31A494-22	2-1/4″	22	81	4.89	180	17.5

P30/31 Series Bearing - SAE B 2 Bolt Cast Iron with OB Bearing Gear Pump CW


tock No.	Gear Width	Code	Displacement cc/rev	Displacement cu.in/rev	Pressure Bar	Weight KG
P31A497-05	1/2″	05	16	0.985	200	13
P31A497-07	3/4″	07	24	1.47	200	14
P31A497-10	1″	10	32	1.97	200	14.5
P31A497-12	1-1/4″	12	40	2.46	200	15
P31A497-15	1-1/2″	15	48	2.95	200	15.5
P31A497-17	1-3/4″	17	56	3.44	180	16
P31A497-20	2″	20	64	3.94	180	16.5
P31A497-22	2-1/4″	22	81	4.89	180	17.5

Available Models: G101/102 C101/102 P30/31 P50/51 P75/76 P315 P330/350 P365



Available Models:
G101/102 C101/102 P30/31 P50/51 P75/76 P315 P330/350 P365























Technical Data:





Ordering Codes:





DRW.NO.	DESCRIPTION	DOYLE NO.	GENERAL NO.
1	8HAFT BEARING SN PRING		391-2686-063
2a	INPUT SHAFT BEARING		391-0381-040
2b	BEARING SPACER(IN PLACE OF SHAFT BEARING)	391-0381-906	391-3383-068
3	MOTOR SEAL RETAINER USED WITH SHAFT BEARING OR SPACER		391-3381-040
4a	PUMPLIP SEALFOR CONTINENTALSHAFT ONLY		391-2883-107
4b	PUMPLIP SEAL FOR PIGGY BACK 76/31 SHAFT END COVER		391-2883-103
4c	MOTORLIPSEAL		391-2883-119
4d	MOTORLIP SEALFOR CONTINENTAL SHAFT ONLY		391-2883-126
5a	31 PAD PILOT PUMPS.E.C.TYFE 00	AV-1685-3	312-5017-201
5b	316BOLT ROUND WITH2.625or66,67 mm PILOT PUMPS.E.C.TYPE05	FB-1685-3	312-5047-201
5c	314BOLT BPILOT PUMPS.E.C TYPE42(4"or 101.6mm piot)	EB-1685-3	312-5037-201
5d	314BOLT CPILOT PUMPS.EC TYPE78(5°or 127 mm piot)	PB-1685-3	312-5037-202
5e	312BOLTAPILOT PUMPS.E.C TYPE 94(314or 82,55mm plok)	WB-1685-3	312-5027-204
51	312BOLTB PILOT PUMPSE.C TYPE 97(4"or 101,6 mm piot)	CB-1685-3	312-5027-201
5g	312BOLT B(TYPE 2)PILOT PUMPS.E.C.TYPE96(4°or 101,6 mm piot)	DB-1685-3	312-5027-205
5h	3151 SHAFT END COVER FOR PIGGYBACKUNITS TYPE 91	DC-1685-15	312-5027-208
51	76/31 SHAFT END COVER FORPIGGYBACK UNITS TYPE 92	ZB-1685-15	312-5027-209
5J	312/4 BOLT BPILOT PUMPS.EC.TYPE 46(4or 101.6 mm piot)	GEB-1685-3	312-5053-202
5k	31 PAD PILOT MOTORS.E.C.TYPE 00	AC-1685-3-M	312-5017-401
5L	316 BOLT ROUND WITH2.62568,87 mm PILOT MOTOR S.E.C.TYPE 05	FB-1685-3-M	312-5047-401
5m	314BOLTBPILOT MOTOR S.EC.TYPE 42(4°or 101,6mm piot)	EB-1685-3-M	312-5037-401
5n	314BOLT CPILOT MOTOR S.EC.TYPE 78(5°α 127 mm plot)	PB-1685-3-M	312-5037-402
50	312BOLTAPILOT MOTOR S.EC.TYPE 94(31482,55mm plot)	WB-1685-3-M	312-5027-404
5p	312BOLTBPILOT MOTOR SEC.TYPE97(4°or 101,6mm piot)	GB-1685-3-M	312-5027-401
5q	312/4BOLTBPILOTMOTOR S.E.C.TYPE46(4or 101,6mmplot)	GEB-1685-3-M	312-5053-402
	FOR MORE INFORMATION OR SPECIAL ORDER,PLEASE CONTACT US
6a	CHECKVALVE MOTOR	HPN-084	391-3681-001
6b	PRESSURE PLUG PUMP	HPN-091	391-2286-004
7	RING SEAL	HPN-126	391-2585-006
8	ROLLER BEARING(01.6870.D)	Y-1032	391-0381-068
9a	PUMP THRUST PLATE	HPN-248	391-2185-031
9b	MOTOR THRUST PLATE	AA-1058	391-2185-013
10	POCKET SEAL		391-2882-086
11 a	SHAFT&GEAR TYPE 30(0.8750×14x3/8°x1"key)	HPN-258	312-29XX-730
11b	SHAFT&GEAR TYPE 25(0.875°0-13-Tooth spine)	HPN-108	312-29XX-230
11e	SHAFT&GEAR TYPE43(1.00°Q×14°×14°x11/4"key)	HPN-259	312-29XX-740
11d	SHAFT&GEAR TYPE65TYPE2(0.875°-13-Tooch spine)	HPN-256	312-29XX-430
11e	SHAFT&GEAR TYPE65TYPE98(1"0-15-Tooth spine)	HPN-435	312-29XX-240
12	PUMP&MOTOR HOUSING GASKET		391-2884-050
13	PUMP&MOTOR GEAR HOUSING	RA-1688-XX	312-82XX-100
14a	31 MOTOR BEARING CARRIER BLANK	VA-1687	312-7740-100
14b	31 PUMP BEARING CARRIER WTH COMMON PASSAGE	VA-1687-11	312-7723-100
15	CONNECTING SHAFT		312-1133-001
16	GEAR SET ONLY	HPN-109-XX	312-28XX-000
17	GEARHOUSING DOWELPIN		391-2082-032
18a	31 PUMP&MOTOR PORT END COVER	XA-1603	312-3120-100
18b	31 PUMP&MOTOR PORT END COVERLARGER PORTING	ZA-1603-RP	312-3420-100
18c	31/31 PIGGY BACKPORTEND COVER	DC-1685-24	312-5027-212
19	FLAT WASHER		391-3784-028
20	BOLTS/STUDS(5/8°UNC)
21	HEXNUT(5/8°UNC)		391-1451-076
22a	CONTINENTAL SHAFTTYPE30(0.875°0×14×3/8×1"key)		312-1500-300
22b	CONTINENTAL SHAFT TYPE 7(1250°-14-tooth splino,Continental only)		312-1135-133
22c	CONTINENTAL SHAFT TYPE 25(0.875°0-13-Toth spine)		312-1135-138
22d	CONTINENTAL SHAFT TYPE43(1.000x1/4*x3/8°×1114key)		312-1500-400
22e	CONTNENTAL SHAFT TYPE 12(0.750°×3/16×3/1618/16"key)		312-1135-152
22]	CONTINENTAL SHAFT TYPE95(0.625°×9-tooth spine)		312-1000-200
23	CONTINENTAL SHAFT BRG.RETAJNER		312-0100-002
24	CONTINENTAL SHAFT BRG.RETAJNER SNAP RING		391-2685-011
Not Shown	PUMP&PIGGY BACK31/31 S.E.C.LIP SEAL		391-2883-058
Not Shown	SEALRETAINER FOR 51/5183151 PIGGY BACK PUMP S.EC.		391-2584-083
Not Shown	SEALRETAINERORING FOR PIGGY BACK PUMPS.E.C.		391-2881-124
Not Shown	SEAL RETAINERORING FOR PIGGY BACK PUMPS.EC.		391-2881-120
Not Shown	SEAL RETAINER FOR76/51&76/31 PIGGY BACK PUMPS.E.C.	HPN-368	391-2585-013
Not Shown	CASE DRAIN PLUG		391-2282-056
Not Shown	SHAFT KEYFORTYPE 12 SHAFT	X10-60	391-1781-075
Not Shown	SHAFT KEYFORTYPE 43&87 SHAFT		391-1781-021
Not Shown	SHAFT KEYFORTYPE 30&68 SHAFT	X10-17	391-1781-025
Not Shown	SHAFT KEY FORTYPE Spl.SHAFT		391-1781-020
Not Shown	30/30 PIGGY BACK CONNECTING SHAFT	HPN-359	312-1133-002
Not Shown	60/30 PIGGY BACK CONNECTING SHAFT	HPN-3680	312-1133-003
Not Shown	75/30 PIGGYBACK CONNECTING SHAFT	HPN-361	316-1133-003
NOTE TheXXshown in the pert number is in place of the slze the true value must be placod nto the part numberwhen ordening parts.
(og.) Ger set no.312-29XX-740 changes to 312-2915-740fox 1.5 gear size
Housing no.312-82XX-100 changes to 312-8215-100 for a 1.5 hcusing size
No porting sizes heve been indicaled all porting must be specfied when ordering perts.









Ningbo Hyleman Hydraulics Co., Ltd is a scientific and innovative company integrating R & D, production, sales and service of high-quality hydraulic pumps, motors, valves and other hydraulic products.


Hyleman mainly provides Rexroth A4VSO, A10VSO, A4VG, A7VO, A11VO and A2FO series high-pressure piston pumps, Rexroth PGH3, PGH4 and PGH5 series high-pressure gear pumps, A4VM, A6VM, A2FM and A4FM series piston motors; BM3, BM4,BM5, BM6 and other orbit motors. Through the honing and innovation of Hyleman people, Hyleman series products can not only perfectly replace the original products, but also realize the seamless exchange and connection of all the parts. Moreover, it has lower noise, higher volume efficiency and longer service life, so as to completely surpass the quality of the original factory, and withstand the severe test of the market, has been exported to more than 70 countries and regions around the world.

Hyleman series products are widely used in engineering machinery, plastic machinery, metallurgical machinery, environmental sanitation machinery, mining machinery, marine machinery, packaging machinery, port machinery and various hydraulic equipment, which are highly praised by clients.

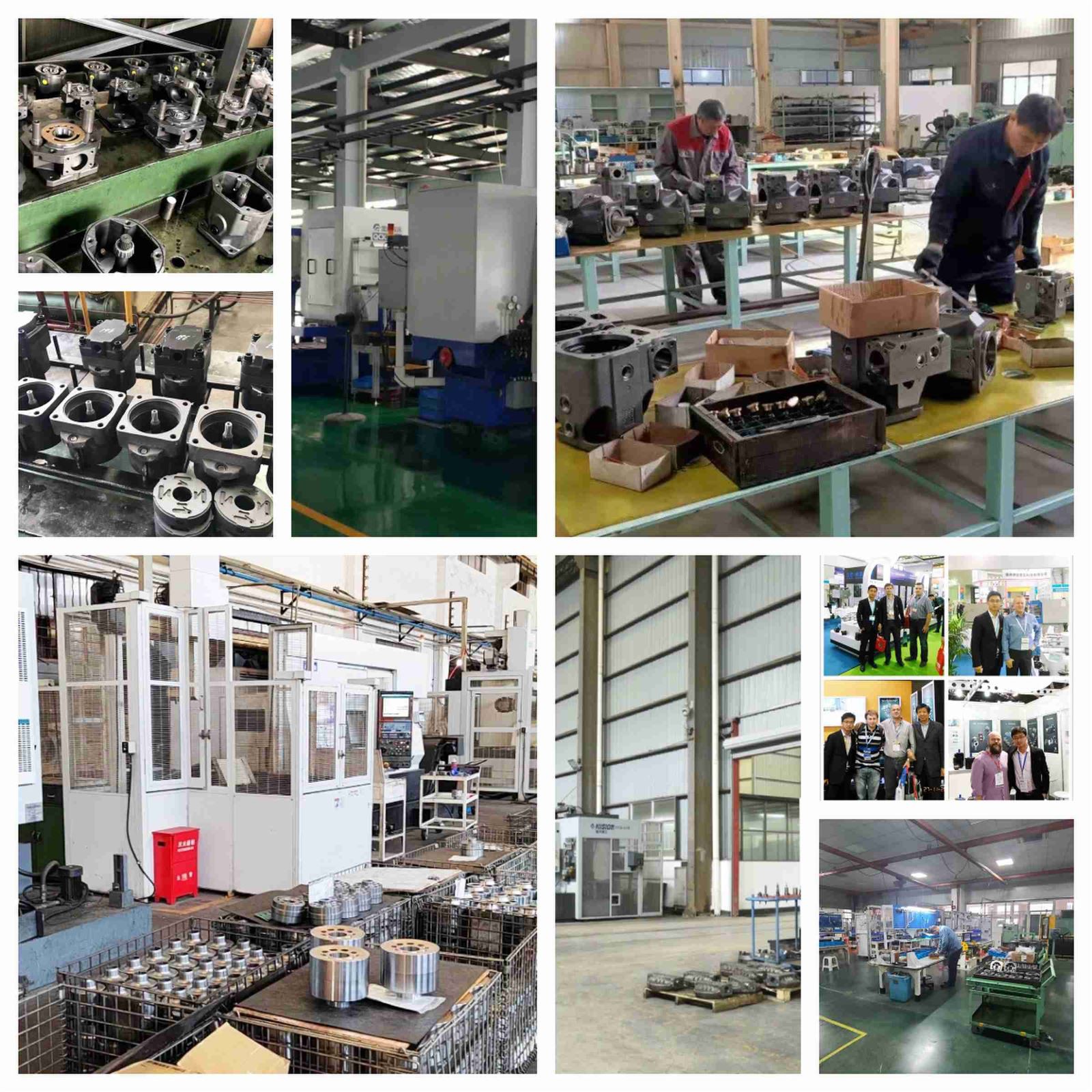

Hyleman has the world advanced CNC processing equipment, vertical and horizontal machining centers, high-precision double-sided grinding, groove grinding, curve grinding and full-automatic machining centers. With 12 independent testing laboratories, the products have been comprehensively inspected before shipment to ensure that Hyleman series products achieve high precision, high quality and zero defects.
