High Pressure Plunger Pump

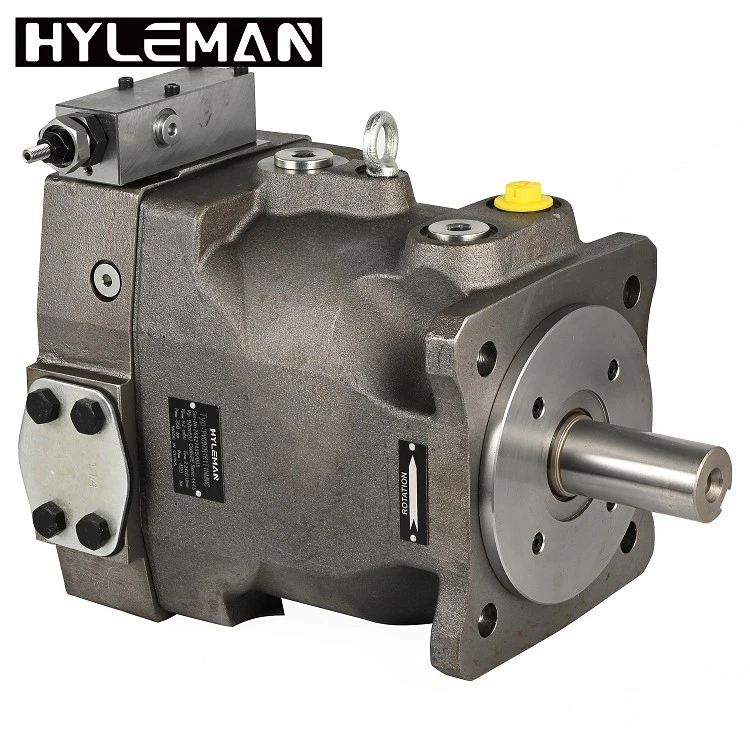

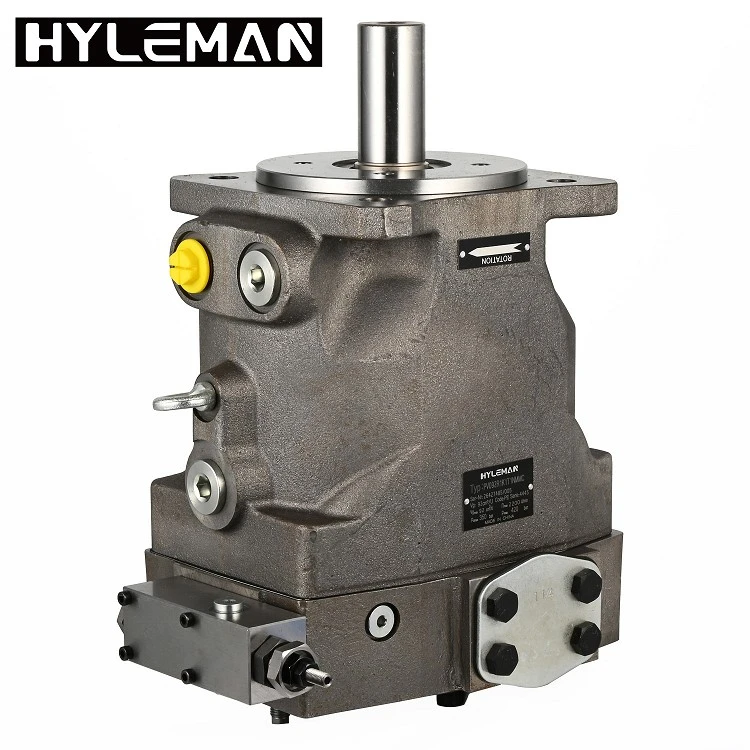

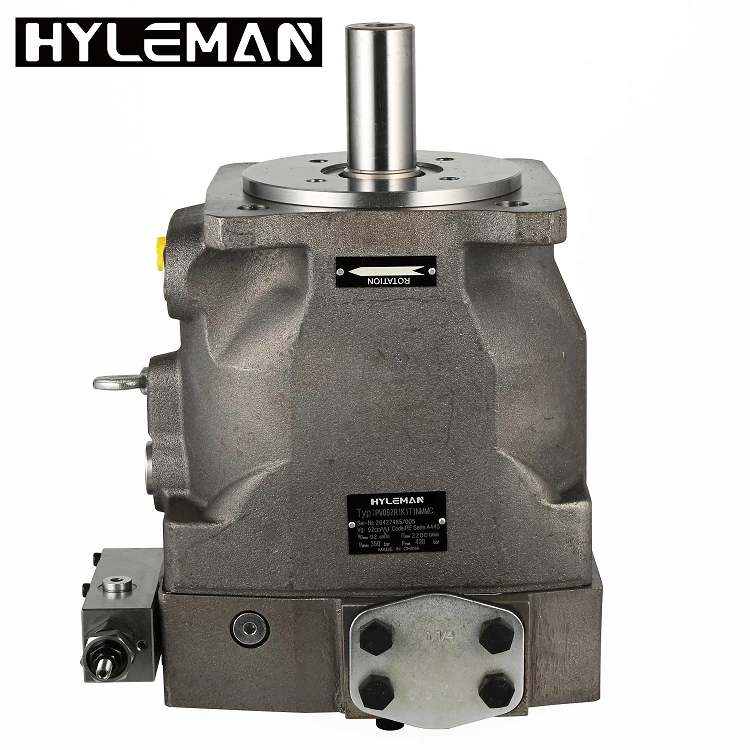

High pressure Parker Hydraulic Pump PV series PV16-PV140-PV180-PV270 Series Hydraulic Piston (plunger) High Pressure plunger Pump
All of HYLEMAN products are completely equivalent and interchangeable with the original.




Axial Piston Variable Displacement Pumps - Series PV plus Open circuit, variable swashplate piston pumps. Optimized for heavy duty industrial and marine applications. Operating pressures of up to 420 bar, high speed ratings and a wide range of highly responsive controls. Displacements from 16 to 360 cc/rev.





- Low noise level
- Fast response
- Service-friendly
- High self-priming speed
- Compact design
- Thru drive for 100% nominal torque




With standard pressure regulator
With power regulator

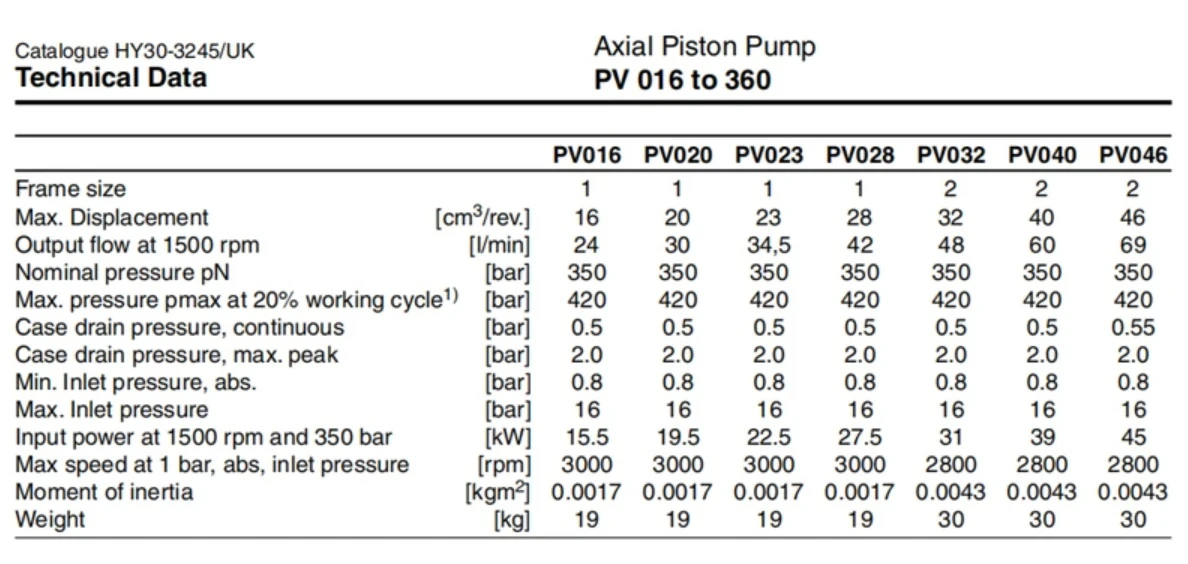

Rated pressure 35MPa
Peak pressure 42MPa








Displacement	16 20 23 63 80 92 140 180 270
Direction of rotation	R: Clockwise L: Counter clockwise
Variation	1: Standard 9:Reduced displacement adjusted
Mounting code	D E F G K L
Threads	1:BSPP 3:UNF 4:BSPP 7:ISO6149 8:ISO6149
Through drive	T: Y A B C D E F G H J K L M
SEALS	N V E W P S
Compensator	Standard Pressure compensator;
	Electrohydraulic compensator
Rated Pressure	35MPa
Max Pressure	42MPa



PV046R1K1T1NMMCX5934	PV040L1K1T1NFWS	PV032R9K1T1NMMC	PV028R9K1T1NMMC	PV023R1K8T1NMMC
PV046R1K1T1NKLCX5801	PV040R1K8T1NMMC	PV032R9K1T1NFWS	PV028R1K1T1WMRC	PV023R1K4T1NMR1
PV046R1K1T1EMMC	PV040R1K4T1NMMC	PV032R1K8T1VMMC	PV028R1K1T1WMMC	PV023R1K1T1WFDS
PV046R1K1JHNMMC	PV040R1K1T1WMRC	PV032R1K1T1WMRC	PV028R1K1T1NFHS	PV023R1K1T1NMFC
PV046R1K1AYNMRC	PV040R1K1T1NUPG	PV032R1K1T1NUPR	PV028R1K1S1NFWS	PV023R1K1JHNMMC
PV046L1K1T1NMMC	PV040R1K1T1NFPV	PV032R1K1T1NKLC	PV028R1K1AYNMMC	PV020R1K1T1WMMC





















1. Fast Delivery time
We can ship small orders within one week, for big orders such as within 500 PCS pumps or cartridge kits usually we can make shipment within one month.



2. Warranty Period
All of our products are within 1 year warranty time after the shipment from our factory.



3. Considerate Service
We can provide technical support at any time if our customers meet any issue during the using, we will provide solutions at the soonest time.
